2LG-C series
For 100mm×140mm type IGBT Power Modules
2LG-C series is suitable for 100mm×140mm type power modules.Built-in isolated DC / DC converter and gate drive circuit, in addition, gate resistor and short circuit protection have already been set. There is also a Follower board, so multiple power modules can be driven simultaneously with one signal.
Product Features
- Low coupling capacitance: 12pF/ Common mode noise reduction
- SC protection: Short-circuit mask time (tsc) / Adjustable down to 1us
- Double protections: DESAT, Soft turn off and *Active clamp
- High output power: Output power suitable for high frequency drive (4W/1ch)
- Scalability: Highly expandable design regardless of circuit method
*2LG-C series is equipped with DESAT and Soft turn off function as standard.
Active Clamp function is not standard. Please contact us for details.
Main Applications
IGBT Gate Driver Unit 2LG-C Series
2LG series is suitable for 100mm×140mm type power modules.
Built-in isolated DC / DC converter and gate drive circuit, in addition, gate resistor and short circuit detection voltage have already been set.
Introduction article
- Optimized for LV100
- Optimized for HPnC
- Optimized for LV100(Video)
2021-04-21 Video_LV100_WIND Solution
Data sheet
Please contact us.
Suitable Gate driver for Mitsubishi Electric / LV100 (Industrial) series
| VCE(V) | IC(A) | Part No | Leader/Follower | TAMURA Gate Driver P/N |
|---|---|---|---|---|
| 1200 | 800 | CM800DW-24T |  Leader | 2LG02ACxC11M |
 Follower | 2LG02ACZC11S | |||
| 1200 | CM1200DW-24T | Leader | 2LG02ACxC11M | |
Follower | 2LG02ACZC11S | |||
| 1700 | 800 | CM800DW-34T CM800DW-34TA | Leader | 2LG01ACxC11M |
Follower | 2LG01ACZC11S | |||
| 1200 | CM1200DW-34T | Leader | 2LG01ACxC11M | |
Follower | 2LG01ACZC11S | |||
| 2000 | 1200 | CM1200DW-40T | Leader | 2LG07ACDC11MP |
Follower | 2LG07ACZC11SP |
x: Signal input voltage selectable "C" => 3.3~15V "D" => 15V
- *Active clamp function is optional. Please contact us.
- *Non-implementation of thermistor isolation circuit is optional. Please contact us.

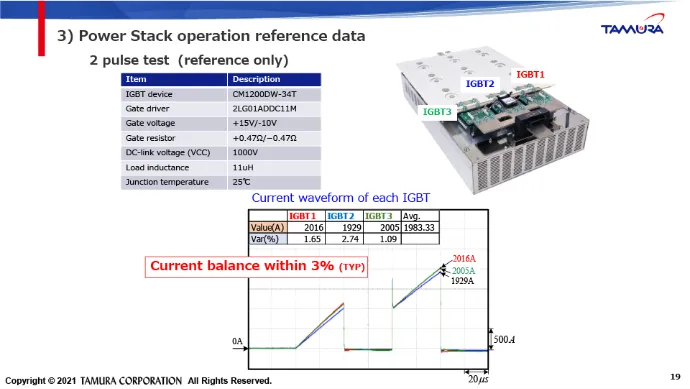

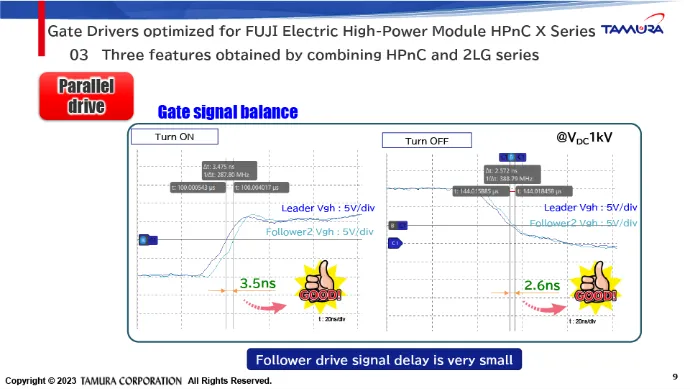

Suitable Gate driver for Fuji Electric High-Power Module HPnC X series
| VCE(V) | IC(A) | Part No | Leader/Follower | TAMURA Gate Driver P/N* |
|---|---|---|---|---|
| 1700 | 1200 | 2MBI1200XZF170-50 |  Leader | T.B.D(contact us) |
 Follower | T.B.D(contact us) | |||
| 1500 | 2MBI1500XZF170-50 | Leader | T.B.D(contact us) | |
Follower | T.B.D(contact us) | |||
| 1800 | 2MBI1800XZF170-50 | Leader | T.B.D(contact us) | |
Follower | T.B.D(contact us) | |||
| 2300 | 1200 | 2MBI1200XZF230-50 | Leader | T.B.D(contact us) |
Follower | T.B.D(contact us) |
* Model name for product under development is subject to be changed.
