2EG-B series

For 17mm type SiC Power Modules

2EG-B series is suitable for 17mm IGBT power module. Built-in isolated DC/DC converter and gate drive circuit and short circuit protection have already been set. Gate resistance is not assembled. They must be assembled by the user before operation.

Contact
3D CAD Data Download

Product Features

  • Low coupling capacitance: 12pF/ Common mode noise reduction
  • SC protection: Short-circuit mask time (tsc)
    / Adjustable down to 1us. Suitable for SiC Power Modules
  • Double protections: DESAT, Soft turn off and Miller clamp
  • High output power: Output power suitable for high frequency drive (4W/1ch)
  • Scalability: Highly expandable design regardless of circuit method.

Main Applications

Gate Driver Unit 2EG-B Series

2DUCE2DUDE

2EG-B series is suitable for SiC power module. Built-in isolated DC/DC converter and gate drive circuit and short circuit detection voltage have already been set.
Gate resistance is not assembled. They must be assembled by the user before operation.

Introduction article

Products Selection Guide

Go to Selection Guide!
Click here to search for applicable power modules

Data sheet

Materials are in preparation

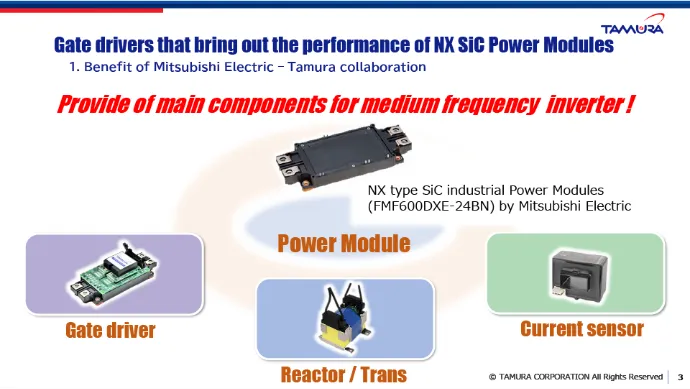

Suitable Gate driver for Mitsubishi Electric NX SiC industrial Power Modules

VDS(V)ID(A)Part noTAMURA Gate Driver P/N
1200600FMF600DXE-24BN2EG01XBxN18N
1700600FMF600DXE-34BNPlease contact us

x: Signal input voltage selectable "C" => 3.3~15V "D" => 15V

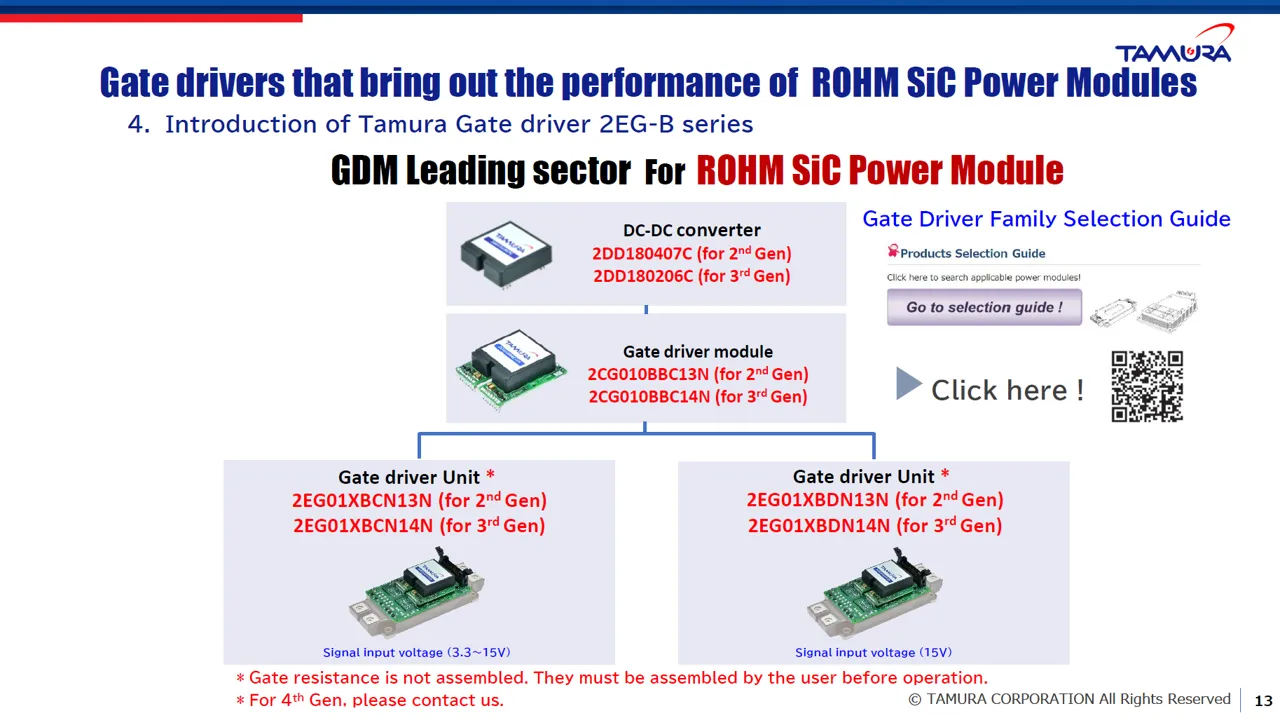

Suitable Gate driver for ROHM

VDS(V)ID(A)Port noTAMURA Gate Driver P/N
1200180BSM180D12P2E0022EG01XBxN13N
300BSM300D12P2E0012EG01XBxN13N
300BSM300D12P3E0052EG01XBxN14N
400BSM400D12P2G0032EG01XBxN13N
400BSM400D12P3G0022EG01XBxN14N
600BSM600D12P3G0012EG01XBxN14N
1700250BSM250D17P2E0042EG01XBxN13N

x: Signal input voltage selectable "C" => 3.3~15V "D" => 15V
