2PG series

For PrimePACK™2 or 3 type IGBT Power Modules

2PG series is suitable for PrimePACK™2 or 3. Built-in isolated DC/DC converter and gate drive circuit, in addition, gate resistor and short circuit protection have already been set.

Contact

3D CAD Data Download

Product Features

Low coupling capacitance: 12pF/ Common mode noise reduction
SC protection: Short-circuit mask time (tsc) / Adjustable down to 1us
Double protections: DESAT, Soft turn off and Active clamp
High output power: Output power suitable for high frequency drive (4W/1ch)
Scalability: Highly expandable design regardless of circuit method

Main Applications

Gate Driver Unit 2PG Series

2PG series is suitable for PrimePACK™. Built-in isolated DC/DC converter and gate drive circuit, in addition, gate resistor and short circuit detection voltage have already been set.

PrimePACK™ is registered trademark of Infineon Technologies AG, Germany.

Introduction article

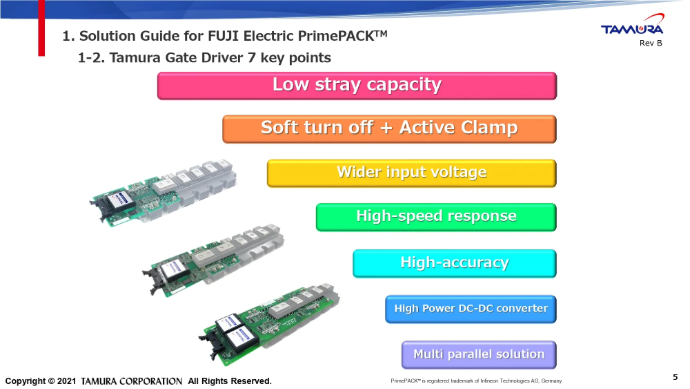

Optimized for Fuji Electric PrimePACK™
- TAM_GDM_00024_Solution Guide for FUJI Electric_PrimePACK_en_RevB[PDF:2.80MB]

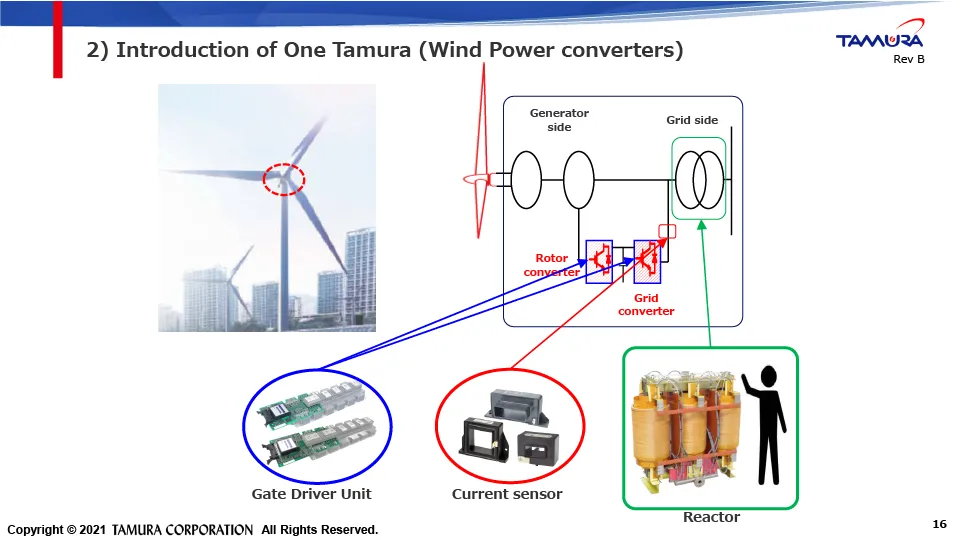

Optimized for Infineon PrimePACK™
- TAM_GDM_00019_Solution Guide for Infineon Technologies AG_PrimePACK_RevB[PDF:2.41MB]

Products Selection Guide

Click here to search applicable power modules!

Gate Drivers Products Selection Guide

Data sheet

Please contact us.

Suitable Gate driver for PrimePACK™

Infineon Technologies AG

Vce	Ic	Power module P/N	TAMURA Gate Driver P/N
1200	900	FF900R12I	Semi-optimized products. Please contact us.
	1200	FF1200R12I
	1400	FF1400R12I
1700	650	FF650R17I
	1200	FF1200R17I
	1000	FF1000R17I
	1400	FF1400R17I

Fuji Electric Co., Ltd.

Vce	Ic	Power module P/N	TAMURA Gate Driver P/N
1200	900	2MBI900XXA120P-50	Semi-optimized products. Please contact us.
	900	2MBI900XXA120E-50
	1200	2MBI1200XXE120P-50
	1200	2MBI1200XXE120E-50
	1400	2MBI1400XXB120P-50
	1800	2MBI1800XXF120P-50
1700	650	2MBI650XXA170-50
	1200	2MBI1200XXE170-50
	1000	2MBI1000XXB170-50
	1400	2MBI1400XXB170-50
	1800	2MBI1800XXF170-50	2PG010CxC11N
