2QG series
For PrimePACK™3+ type IGBT Power Modules

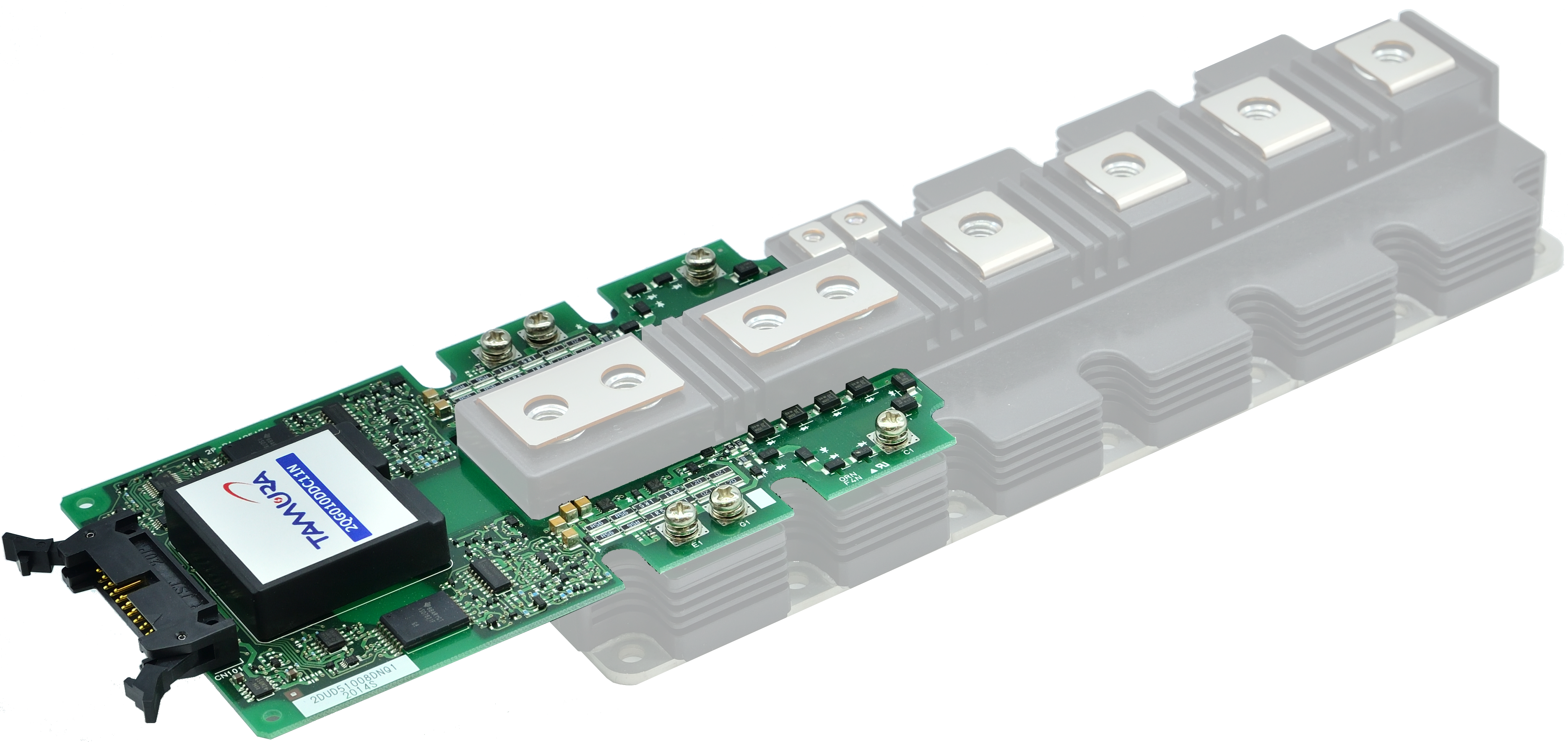

2QG series is suitable for PrimePACK™3+. Built-in isolated DC/DC converter and gate drive circuit, in addition, gate resistor and short circuit protection have already been set.
Product Features
- Low coupling capacitance: 12pF/ Common mode noise reduction
- SC protection: Short-circuit mask time (tsc) / Adjustable down to 1us
- Double protections: DESAT, Soft turn off and Active clamp
- High output power: Output power suitable for high frequency drive (4W/1ch)
- Scalability: Highly expandable design regardless of circuit method
Main Applications
IGBT Gate Driver Unit 2QG Series
2QG series is suitable for PrimePACK™3+. Built-in isolated DC/DC converter and gate drive circuit, in addition, gate resistor and short circuit detection voltage have already been set.
PrimePACK™ is registered trademark of Infineon Technologies AG, Germany.
Introduction article
- Optimized for Fuji Electric PrimePACK™
- Optimized for Infineon PrimePACK™
- Optimized for Fuji Electric PrimePACK™3+
Products Selection Guide
Data sheet
Please contact us.
Suitable Gate driver for Infineon Technologies AG
Infineon Technologies AG
| Vce | Ic | Part No | TAMURA Gate Driver P/N |
|---|---|---|---|
| 1200 | 900 | FR900R12IE4D | Semi-optimized products. Please contact us. |
| 1500 | FF1500R12IE5 | ||
| 1800 | FF1800R12IE5 | ||
| 1700 | 1500 | FF1500R17IP5 | |
| 1800 | FF1800R17IP5 | 2QG020CDC11N |
- *Active clamp function is optional. Please contact us.
Suitable Gate driver for Fuji Electric
Fuji Electric Co., Ltd.
| Vce | Ic | Part No | TAMURA Gate Driver P/N |
|---|---|---|---|
| 1200 | 2400 | 2MBI2400XRXF120-50 | Semi-optimized products. Please contact us. |
| 1700 | 1800 | 2MBI1800XXG170-50 | 2QG010CDC11N |
- *Active clamp function is optional. Please contact us.
