2RB series

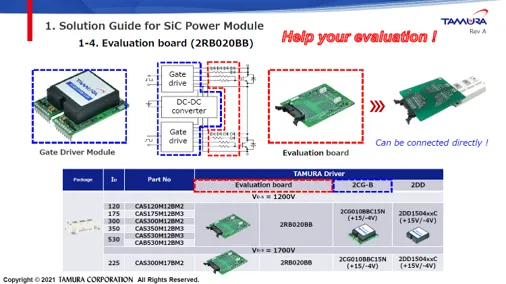

Evaluation Board for Gate driver modules (driver core)
Noted : The purpose of this product is to easily evaluate the gate driver modules(2CG-B or 2CG-D series).
It cannot be used in mass production.
Product Features
- A product that allows easy evaluation of combinations of 62mm and other power modules and gate driver modules (2CG-B, 2CG-D series)
- 2 products available: for SiC and for IGBT
Main Applications
Evaluation Board
Noted
The purpose of this product is to easily evaluate the power module.
It cannot be used in mass production.
Introduction article
Data sheet
General characteristics of 2RB series
| Port no | 2RB010CB | 2RB020BB |
|---|---|---|
| Power semiconductor device | For IGBT EconoDUAL™ 62mm | For SiC MOSFET 62mm Mitsubishi / SiC |
| Operating Temperature | -40～85℃ | -40～85℃ |
| Storage Temperature | -40～90℃ | -40～90℃ |
| Input voltage (VIN) | 13～28V | 13～28V |
| Input voltage (Vcc) | 13～28V | 13～28V |
| Signal input voltage | 3.3～5V | 3.3～5V |
| DESAT voltage | 10V | 5V |
| DESAT detection time | 4us | 1us |
| Soft-turn-off (Resistor) | 50Ω | 50Ω |
| Miller clamp | N/A | Yes |
EconoDUAL™ is registered trademark of Infineon Technologies AG, Germany.
