2CG-B series
For 2in1 type SiC Power Modules
The gate driver module (driver core) is a product that integrates a DC-DC power supply and a drive circuit.
It supports power modules up to 2500V.
It low stray capacitance between the primary and secondary, making it ideal for driving SiC power modules.
Product Features
- Low coupling capacitance: 12pF/ Common mode noise reduction
- SC protection: Short-circuit mask time (tsc)
/ Adjustable down to 1us. Suitable for SiC Power Modules - Double protections: DESAT, Soft turn off and Miller clamp
- High output power: Output power suitable for high frequency drive (4W/1ch)
Main Applications
Gate Driver Module 2CG-B Series
The next generation gate driver emerges with high insulation voltage (support to 1700V module) and low profile, in addition to the conventional low stray capacity.
Introduction article
- Gate Driver Module for all SiC

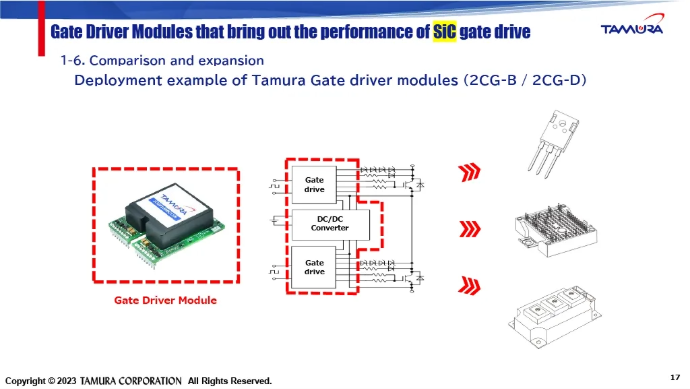

- TAM_GDM_00060_Gate Driver Modules that bring out the performance of SiC gate drive[PDF:4.2MB]
- TAM_GDM_00017_Gate driver module and Reference board that bring out the performance of Infineon SiC module[PDF:4.4MB]
- TAM_GDM_00061_Gate driver module and Reference board that bring out the performance of Wolfspeed SiC module[PDF:1.9MB]

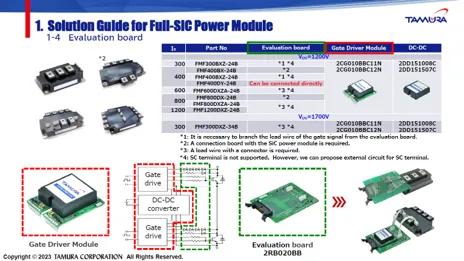

- TAM_GDM_00031_Gate driver module that bring out the performance of Mitsubishi SiC module[PDF:3.6MB]
Products Selection Guide
Data sheet
General characteristics of 2CG-B series
*Products with a "P" at the end are individually packaged.
| Item | Model | |||||
|---|---|---|---|---|---|---|
| 2CG010BBC12N | 2CG010BBC11N | 2CG010BBC13N | 2CG010BBC14N | 2CG010BBC15N | ||
| Application | IGBT | SiC-MOSFET | ||||
| Input | Input Voltage Range | DC13V～28V | ||||
| Logic Input Voltage | DC3.3V～5V | |||||
| Output | Number of Output | 2 | ||||
| Output Power (per 1ch) | 3.3W | 4W | 3.5W | 3.2W | 3.0W | |
| Gate Voltage (ON) | +14V～+16V | +14V～+16V | +17V～+19V | +17V～+19V | +14V～+16V | |
| Gate Voltage (OFF) | -14V～-16V | -9V～-11V | -3V～-5V | -1V～-3V | -3V～-5V | |
| Peak Output Current (Gate Current) | ±43A | |||||
| Insulation | Withstand voltage | Primary to secondary : AC5000V | ||||
| Secondary to secondary : AC4000V | ||||||
| Delay Time | 100ns(T.B.D) | |||||
| Minimum Clearance Distance | Primary to secondary : 14mm | |||||
| Secondary to secondary : 7mm | ||||||
| Minimum Creepage Distance | Primary to secondary : 14mm | |||||
| Secondary to secondary : 12mm | ||||||
| Function | Switching Mode Select | Direct mode and half bridge mode can be selected | ||||
| Dead Time (Half Bridge Mode) | Adjustable by external circuit | |||||
| Desaturation Protection | Yes | |||||
| Soft Turn Off | Yes | |||||
| Miller Clamp | Yes | |||||
| Protection Release Condition | Auto recovery | |||||
| Environment | Ambient Temperature (Operating) | -40～+85℃ (Input Voltage : DC13V～18V) | ||||
| -40～+75℃ (Input Voltage : DC13V～28V) | ||||||
| Ambient Humidity (Operating) | 20～95%RH (Nil condensation) | |||||
| Ambient Temperature (Storage) | -40～+90℃ | |||||
| Ambient Humidity (Storage) | 5～95%RH (Nil condensation) | |||||
