Pulse Transformers / Data Sheets (G)
Pulse Transformers
Main Applications

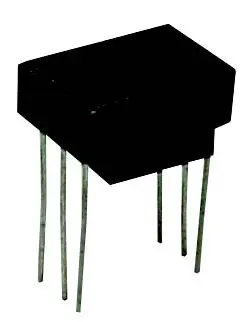

Encapsulated Isolation Transformer
Suitable for Data Interface
Operating Temp 0°C to 70°C
Electrical Specification @ Ta=25°C
| Part No. | Primary OCL mH | Turns Ratio | Interwinding Capacitance pF | Leakage Inductance μH | DCR (Ω) |
|---|---|---|---|---|---|
| G500 | 4.50 | 1:1:1 | 60 | 1.3 | 3.9:3.9:3.9 |
| G502 | 0.50 | 1:1:1 | 32 | 0.4 | 1.3:1.3:1.3 |
| G503 | 0.20 | 1:1:1 | 18 | 0.3 | 0.9:0.9:0.9 |
| G505 | 5.0 | 2:1:1 | 33 | 3.6 | 3.9:2.0:2.0 |
| G506 | 1.60 | 2:1:1 | 19 | 1.8 | 2.5:1.4:1.4 |
| G507 | 0.40 | 2:1:1 | 11 | 1.1 | 1.3:0.7:0.7 |
| G508 | 2.00 | 1CT:1CT | 37 | 0.8 | 2.5:2.5 |
| G509 | 0.50 | 1CT:1CT | 32 | 0.4 | 1.3:1.3 |
| G510 | 0.05 | 1CT:1CT | 18 | 0.5 | 1.3:1.3 |
| G512 | 2.00 | 2CT:1CT | 19 | 1.8 | 2.5:1.4 |
| G513 | 1.20 | 1:1:1 | 25 | 0.5 | 0.7:0.7:0.7 |
| G514 | 1.20 | 1:1:1 | 30 | 0.7 | 0.7:0.7:0.7 |
| G515 | 0.20 | 2CT:1CT | 8 | 0.8 | 0.9:0.5 |
| G516 | 0.50 | 1:1.3 | 32 | 0.7 | 1.35:1.35 |
| G517 | 1.00 | 1CT:1.41CT | 32 | 1.5 | 1.5:1.5 |
