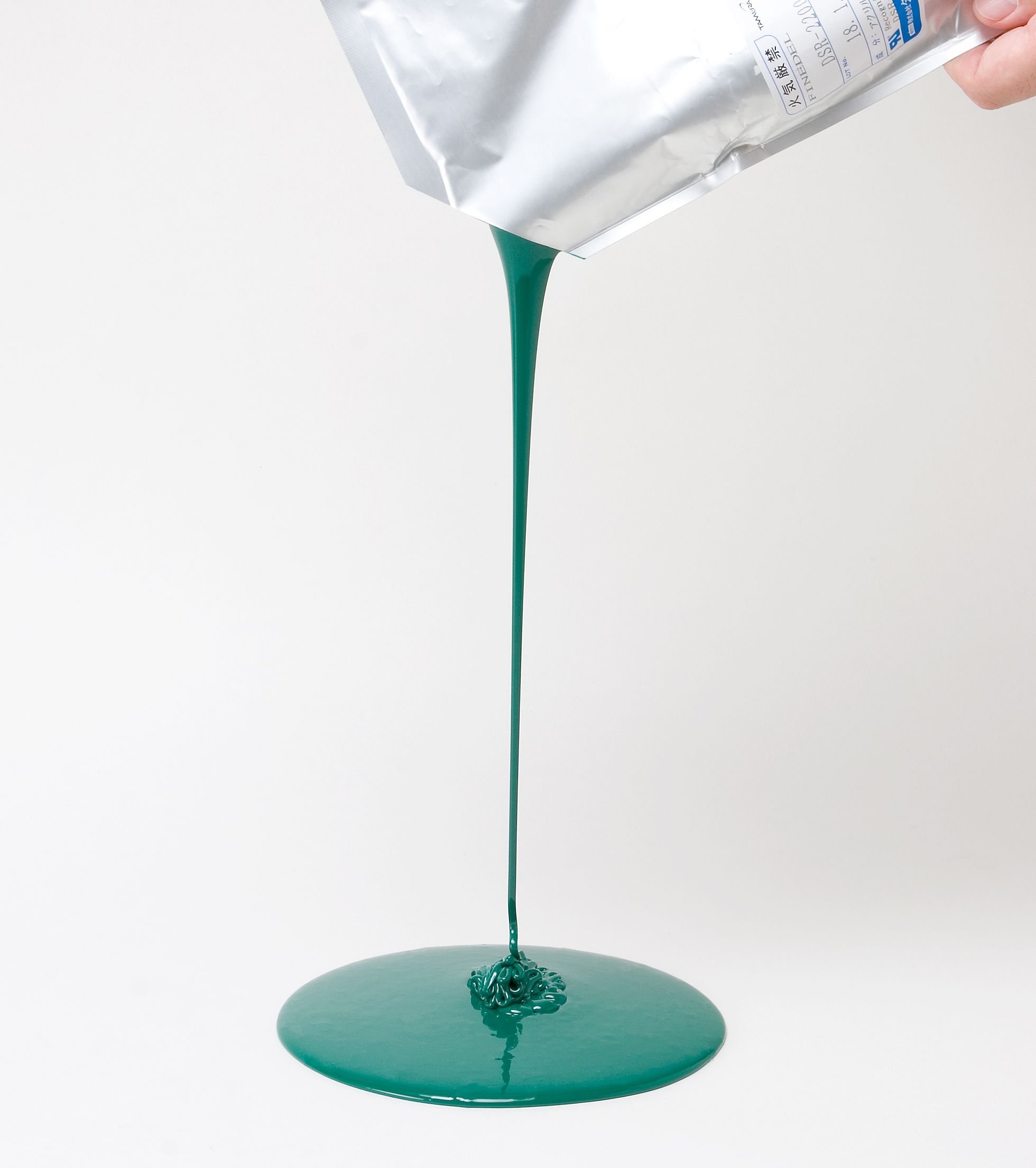

Solder Resist for automotive application with outstanding reliability even in harsh environments
Solder Resist for automotive applocation with outstanding reliability even in harsh environments
Product Features
- In addition to conventional heat resistance, humidity, resistance, and insulation reliability, excellent crack resistance is achieved by the use of stress-relieving resin, which provides low elasticity and high elongation properties.
- Matte type
- High insulation resistance
- Good adhesion after high temperatures
- Thermal shock resistance
Main Applications
Outstanding reliability, such as thermal shock resistance, thermal storage resistance, humidity resistance and insulation resistance
Thermal storage resistance
Insulation reliability at high voltage
General Characteristics
| Items | Test condition | DSR-2200 ACR -19M |
|---|---|---|
| Appearance | Visual inspection | Green Matte |
| Soldering resistance | 260℃10sec / 3cycles | No Delamination |
| Film hardness | JIS K5400 | 4H |
| Acid resistance | 10% H2SO4 20min（25℃） | No Delamination |
| Alkaline resistance | 5% NaOH 20min（25℃） | No Delamination |
| Insulation reliability | 85℃85%RH 1kV 1000hrs (L/S=125/800μm) | 2E+9Ω |
| Resolution | Dry thickness 40μm/80μm on solder dam | 50μm/80μm (Exposure 200mJ/cm2) |
| Thermal shock resistance | TAMURA internal test board -40℃⇔160℃ 1000cycles | Pass |
Physical Properties
| Items | Test condition | DSR-2200ACR-19M | Conventional |
|---|---|---|---|
| Elastic Modulus(GPa) | Measurement Method : Tensile test Wet Thickness 25-45μm Tensile speed 5mm/min 25℃ | 2.2-2.7 | 3.3-3.7 |
| Tensile Strength(MPa) | 50～70 | 30～35 | |
| Elongation Rate(%) | 2.7～3.3 | 0.8～1.2 |
Contact & Download Materials
Suitable products are proposed to meet your specific needs. Feel free to contact us for more information.
