DECT Based Wireless Intercom System

The Based Wireless Intercom System is a digital wireless intercom that complies with the DECT standard (ARIB STD-T101).

Product Features

Each system has 4 groups of audio circuits and can connect 10 handsets per antenna. The maximum number of handsets that can be connected in one system is 60 for simultaneous talk handsets alone, and 176 handsets can be connected when combined with command-receiving handsets, allowing for a large-scale system configuration.
DECT Based Wireless Intercom System Portable type combines the functions of the parent unit and main unit, and can connect up to 10 handsets, making it possible to create two call groups.
As it is battery-powered, it can be used outdoors where a power supply is not available.
Features１：10 handsets can be connected to one active antenna.
10 handsets (MK-B96A) can be connected to one active antenna (MK-A96).
Also, it is one of the first to support ARIB STD-T101 version 2.0.
The maximum number of simultaneous call handsets that can be used in one system is 60.
Furthermore, by using the "command receiving mode", it is possible to connect 48 simultaneous talking handsets and 128 command receiving handsets.
* When set to "Command Reception Mode", up to eight simultaneous communication handsets can be connected to one active antenna.
Features2：The handset can listen to multiple call groups simultaneously
The handset is equipped with two volume knobs, A and B.You can listen to multiple call groups at the same time.You can also set up a program (PGM) instead of a call group.
* You can select and set "2 group simultaneous listening + fixed PGM" or "1 group listening + variable PGM".
Features3：1.9GHz, DECT system adopted.
There is no interference with 2.4GHz and 5GHz bands such as Wi-Fi. In addition, when 1.9GHz radio waves such as existing PHS are detected, the channel is automatically changed to reduce the risk of interference.
Compared to the 2.4 GHz and 5 GHz bands, the frequency is lower (= the wavelength is longer), so diffraction is stronger, making it easier for radio waves to travel around obstructions.
Features4：Active antennas can also be cascaded
A LAN cable is used between the main controller (MK-C96) and the active antennas.
The active antennas can also be cascaded, just like previous models.*EIA/TIA568 Cat5e or higher recommended.
In addition, the distance can be extended up to 2.5 km using optical fiber cable.
Features5：Clear, high-quality sound
Achieves clear, high-quality sound. Audio frequency response is 100Hz to 7kHz.
Features6：Equipped with a "seamless handover function" that ensures sound is not interrupted.
By connecting with two active antennas during handover, uninterrupted calls are possible.

Main Applications

"DECT Based Wireless Intercom System" is Tamura Corporation's new digital wireless intercom system that inherits the intercom system technologies developed over time and complies with the new DECT format (ARIB STD- T101 Ver.2.0).
DECT Based Wireless Intercom System allows for improved convenience and large-scale system design, while maintaining the usability that enables intuitive operation.
DECT Based Wireless Intercom System is a communication tool that achieves both innovation and familiarity.

Features

The main controller allows for both touch-panel control and knob-based adjustments that inherit Tamura's previous intercom series.
Audio lines can be organized into 4 groups per system.
The main controller is equipped with 4W/2W external connections, which make linking with wired intercom systems as easy as before.
Ethernet cable is used for the communication line between the antenna and the main controller. In addition, an optical cable is used to support longer distances, which can be extended to a maximum of 2.5km.
When a PoEHUB is used, Ethernet cable also allows for a star network configuration.
10 personal stations can be connected per antenna, and up to 60 personal stations can be connected per system for simultaneous calls only.
When combined with dedicated command-receiving devices, a total of 176 personal stations (48 personal stations for simultaneous calls and 128 personal stations for receiving commands) can be connected so as to enable large-scale system configuration.
Up to 16 antennas can be connected per main controller. When connecting 5 or more cell stations, connecting the main controller to the power supply can supply the power to all of the antennas.
Seamless handover is adopted for the movement of personal stations between antennas.
As the next antenna is detected beforehand, the seamless handover enables smooth transfer between antennas and seamless communication during station movements.
Two audio groups can be assigned to the personal station to allow you to listen to the two groups simultaneously.
Each volume adjuster is operated through knob control, which has been a popular feature of Tamura's previous intercom systems.
It allows you to adjust the volume intuitively and respond instantly without the need to look at equipment when busy in the field.
The system uses the 1.9-GHz band (DECTARIB STD-T101 Ver.2.0), which does not overlap the Wi-Fi or other bands, reducing crosstalk.
The system also reduces the crosstalk risk by channel transfer, when detecting any radio wave for an existing PHS or Tamura's previous digital wireless intercom systems.

Download the catalog

Catalog for DECT Based Wireless Intercom System[PDF:669KB]

Main Controller MK-C96

Features

Controls the entire system, when connected to an active antenna.
Equipped with a line-specific volume adjustment feature for external interfaces.

Specifications

External interface (4W/2W unit)	4 lines
Ethernet unit (for connecting to an active antenna)	4 lines
PGM input	1 line
Optical interface (for connecting to an active antenna)	1 line
Make-contact	4-line dry make-contact (Dsub15PIN)
Structure	Rack-mount type EIA=2U
Power supply	AC100V～240V
Power consumption	Approx. 40W
Environment	－10 ～ 50℃(excl. the display panel LCD)
Weight	Approx. 8kg
Dimensions	H88×W480×D350 (mm)

Active Antenna MK-A96

Features

Communicates wirelessly with personal stations through control via the main controller.

Specifications

No. of personal stations connected per antenna	When 10 personal stations are connected for simultaneous calls only and dedicated command-receiving devices are included: 8 command-receiving devices + 128 personal stations for simultaneous calls only
Structure	Wall-mounted and microphone stand-mounted
Power supply	48V (main controller or power supply) External power supply DC12V
Power consumption	Approx. 9W
Environment	－10 ～ 50℃
Weight	Approx. 400g
Dimensions	H245×W153×D51 (mm)Including antenna and fixtures

Power Supply MK-P96

Features

Used to supply power to active antennas.(Required when 5 or more active antennas are connected per main controller.)

Specifications

Output voltage	55V Output voltage
Power supply	AC100V ～ 240V
Structure	Rack-mount type EIA=2U
Power consumption	Approx. 160W
Environment	－10 ～ + 50℃
Weight	Approx. 7kg
Dimensions	H88×W480×D350 (mm)

Personal Station MK-B96A

Features

Communicates wirelessly with active antennas.
Supports the assignment of two audio groups and volume adjustment for each group.

Specifications

Frequency characteristics	100Hz～7kHz
Power supply	AA alkaline battery x 2, or AA nickel metal hydride secondary battery x 2
Continuous use time	Approx. 10 hours (AA alkaline battery x 2) Approx. 12 hours (AA nickel metal hydride secondary battery x 2)
Environment	－10 ～ + 50℃
Weight	Approx. 220g (incl. batteries)
Dimensions	H121×W85×D27 (mm)

Charger MK-E96

Features

Personal Station MK-B96A equipped with the dedicated rechargeable battery PBA-4120* can be plugged in and charged as is. The PBA-4120 can also be charged by itself, allowing you to prepare spare batteries, etc.
When the full charge OFF switch is selected, batteries that are close to full charge will not be charged, and trickle charging can be stopped to extend the life of the PBA-4120.

MK-E96 User Manual

Specifications

Charging Current	800mA±100mA
Charging time	Approx. 2 hours and 30 minutes
Power Supply	AC100V±10％ 50Hz/60Hz
Power consumption	20VA or less
Operating temperature	0℃～40℃
Weight	1.2kg or less (including AC adapter)
Dimensions	H100×W120×D141(mm)

Dedicated rechargeable battery PBA-4120

Specifications

Battery type	Nickel-metal hydride battery, 2 cells connected in series
Rated voltage	2.4V
Nominal Capacity	1900mAh
Complete Charge	Approx. 2 hours 30 minutes
Operating temperature range	Charging 0~+40℃ Discharge -10~+50℃
Weight	82±10ｇ

*The standard battery case (YBA-4120) included with the personal station (MK-B96A) is not compatible with the charger.

Headset MK-316C

Specifications

Microphone (condenser type)

Impedance	1.6kΩ±30％
Sensitivity	–73.0dB±4dB at 1kHz (0dB = 1V/0.5Pa)
Frequency characteristics	100Ｈz～10kHz

Receiver

Impedance	300Ω (cord resistance included)
Rated input	10mW
Maximum permissible input	300mW
Output sound pressure level	121dB at 1kHz (0dB = 2×10-5 Pa)
Frequency characteristics	100Hz ～ 8kHz

*MK-316C is exclusive for personal station.

Main System Specifications

Max. no. of stations connected per system	60 personal stations for calls or 48 personal stations for calls ＋ 128 command-receiving devices
Max. no. of personal stations connected per active antenna	10
Max. no. of active antennas connected per system	16
No. of call groups per main controller	4
No. of personal station groups for simultaneous listening	2 (independent volume adjustments enabled)
Frequency characteristics	100Hz ～ 7kHz
Radio system / Operating frequency	J-DECT ARIB STD-T101(Ver.2.0) / 1.9GHz band
Personal station multipath support	Polarization diversity
Handover method	Seamless handover
Communication distance (line-of-sight)	300 m
Between the main controller and active antenna	Ethernet cable (max. 100m) or optical cable (max. 2.5km)
Continuous use time for personal station	Approx. 10 hours (AA alkaline battery x 2)

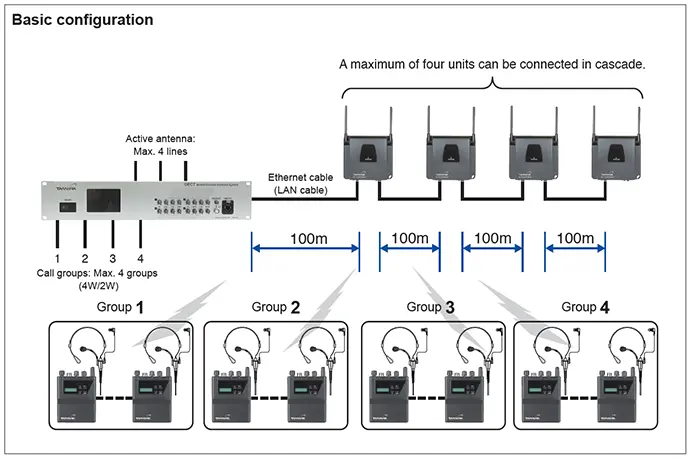

System Configuration Examples

*PHS radio stations and different types of radio stations for digital cordless telephones operate in the operating frequency band of this equipment. Due consideration has been given to this equipment so as to prevent radio wave interference with other radio stations that use the same frequency band. However, should the equipment cause any harmful radio wave interference to another radio station, immediately stop emitting radio waves, and then contact our inquiry service desk, which is provided on the back of this catalog, to discuss how to prevent such crosstalk.
*All of the product screen images are inset composite images.
