Conveyor chain Automatic grease up unit

Countermeasures to prevent metal foreign matter contamination in reflow process.
Let's prevents forgetting to lubricate the chain and prevents uneven application by human operators by conveyor chain Automatic grease up unit.

Contact

Main Applications

~Metal sliding in a reflow oven~

Necessity of grease up

The conveyor chain and chain guide rail continue sliding in a heated environment.

As shown in the drawing on the left, the conveyor chain and guide rail slides repeatedly through a high temperature area at a speed between 0.3m/min and 1.5m/min.

For this reason, it is necessary to constantly lubricate the parts where metals slide against each other in order to prevent and reduce wear caused by metal sliding.

Current issues with grease application (Feedback from customer )

It is dangerous to apply the grease while the conveyor is moving (not permitted)
Accidentally attaching the grease to the board transport part (pin part)
It is difficult to apply the grease evenly by workers.

Lubricate Automation is urgently need

Grease lubricate condition

Discribe with current lubricate process

Condition of grese lubricate with automatic grease up unit

Transfer coating process from idler adopted

It is possible to lubricate the grease more uniformly to the chain link (center) where the chain guide rail slides, compared to manual brush application.

Automatic grease up unit overview

Benefits of installing the automatic grease up unit (work efficiency)

Uniformity <UP>
Lubricate grease by hand, there is a risk of variation depending on the worker and the grease may adhere to the chain pin. But with automatic grease up unit apply stable amount of grease, and reduce the risk of grease adhering to the chain pin.
Process man hour <DOWN>
Manual Grease up: Single (approx. 60 minutes)
Automatic grease up: The labor hours are the same whether it is single or twin (approx. 20 minutes)
Grease up forgotten risk <DOWN>
Caution message will automatically shown in the operation panel after a certain period of time has passed, to stop forgotten grease up
Safty <UP>
In current situation, the chain lubricate by hand while chain moving. The risk of getting caught in the chain in manual process, but no risk of getting caught in the chain in automatic grease up process.

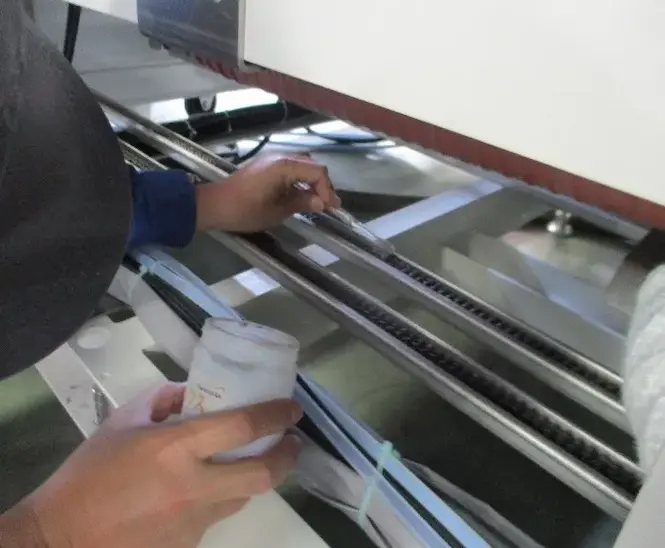

Previous lubrication: The lubrication required workers to enter the device.
