Black Absorption Material
High resolution Black color photo-imageble solder resist
Product Features
- Black matte type
- Suitable for Direct-imaging
- High-sensitivity, High-resolution
- Fine pitch insulation reliability
Main Applications
(Copper Thickness 17µm)
主要特性
| 項目 | APB-200-25 | 評価条件 | |
|---|---|---|---|
| 外観 /グロス値 | マット黒色 ／10-15 | グロス値測定角度 ：60° | |
| 導体上膜厚 | 10-12µm | on copper | |
| 露光量 | 60mJ/cm 2 | ORC Mms604B (3 wavelengths) | |
| 感度 | 6段 Step 6 | Stoffer step tablet | |
| 解像性 | SRダム | 30µm | |
| アンダーカット | 6-10µm | ||

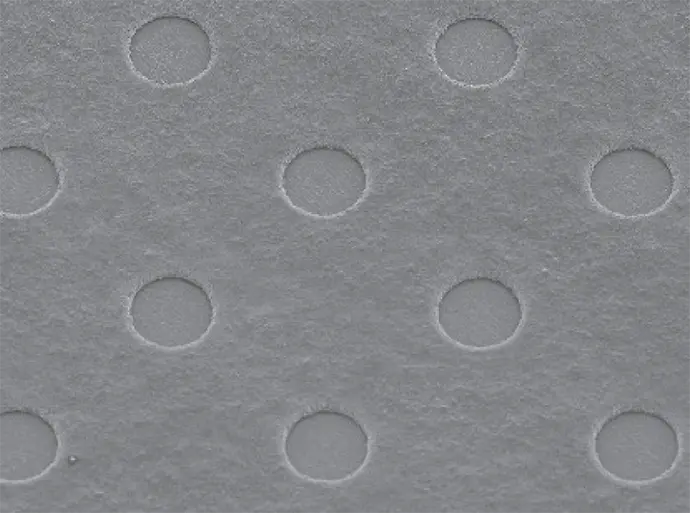

| Via開口 | 80µmΦ | 開口率75%以上の開口径 | |
| ｂHAST | ≧1.0E+8 | L/S=30µm/30µm 85%RH/110℃，DC20V， 250h(in chamber) | |
