Gate Drivers

Gate Driver Products Overview

Product	Function	Block diagram	Appearance
DC/DC Converter ≦2.5kV 3.3kV	DC/DC for 2 in 1 or 1 in 1
Gate Driver Module ≦2.5kV	DC/DC Converter + Gate Drive
Gate Driver Unit ≦2.5kV	Gate Driver Module + Gate resistors Protective function
Gate Driver Unit 3.3kV	Gate Driver Module + Gate resistors Protective function

Gate Drivers Products Selection Guide

Go to Selection Guide!

Click here to search for applicable power modules

Units (Plug & Play drivers) / Power Modules Blocking Voltage ≦2.5kV

Ready-to-use gate drivers that have been matched to a specific power device.

Units (Plug & Play drivers) / Power Modules Blocking Voltage 3.3kV

Ready-to-use gate drivers that have been matched to a specific power device.

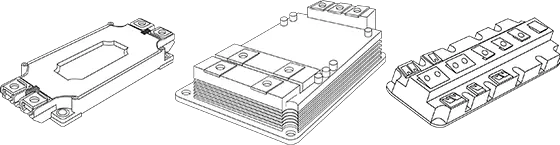

Modules (Driver cores) / Power Modules Blocking Voltage ≦2.5kV

Integrates an isolated DC-DC power supply, drive circuit, and protection circuit.

DC-DC Converters for Gate Drive

2-output type isolated DC-DC power supply designed specifically for gate drives and intended as a 2-in-1 type.

Select from Power Module Manufacturer

Contact & Download Materials

Suitable products are proposed to meet your specific needs. Feel free to contact us for more information.

*Only 3D CAD data for the following products are available for download: Current Sensors, Gate Drivers, and Power Supply Modules.
